Starting a New Design

Top  Previous  Next

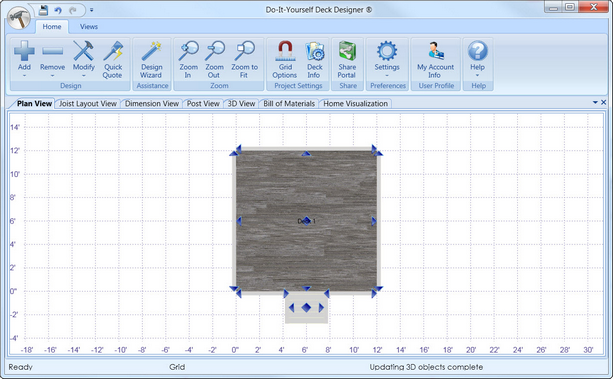

When the software is launched, the software will launch in a Tabbed view, as shown below.





Click on image to enlarge
Click on image to enlarge

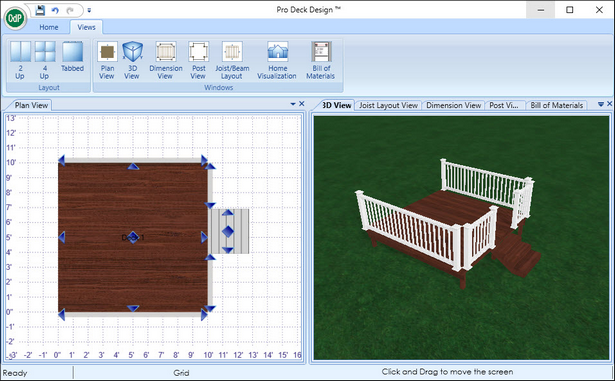

Alternative is the 2-Up View. Note that any tab (view) can be the focus.



Click on image to enlarge
Click on image to enlarge

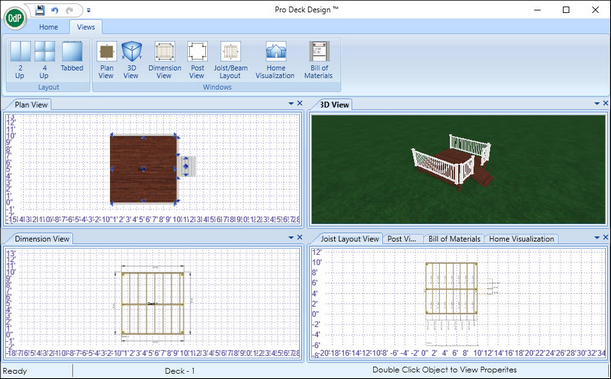

Alternative is the 4-Up View. Note that any tab (view) can be the focus.



Click on image to enlarge
Click on image to enlarge





To begin a project, add elements by clicking the Add button in the Home ribbon.





To end a session and start a new session:



1.Click the Design Button. C-OdP-circle
2.Click New in the menu.
3.The New Session dialog is displayed.
4.Click the OK button. The software will display a Plan View, as shown above.
5.Click the Add button in the Home Ribbon to add design elements.
