Modifying a Herringbone Divider

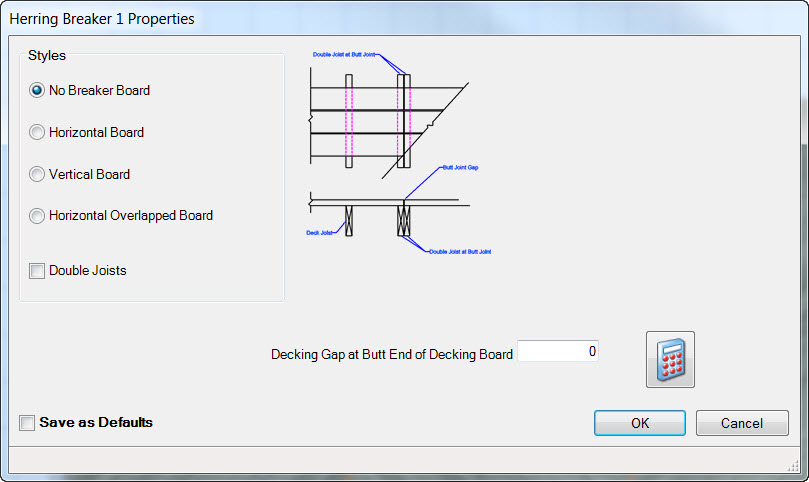

| 1. | Double-click a Herringbone Divider to edit it. |
| 2. | From the Herringbone Divider Properties dialog, select a breaker board style. Refer to the diagram on the dialog for details. |
| 3. | Select the desired style |
| 4. | Enter a decking gap (optional). |
| 5. | Click OK. |
 |
| Click on image to enlarge |

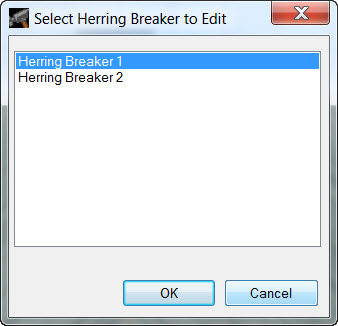

Note: The Herringbone Divider Properties dialog can also be accessed by clicking Modify in the Home Ribbon, and then selecting Herringbone Divider from the menu. If multiple decks exist, you will be prompted to choose a Herringbone Divider to edit.
 |
| Click on image to enlarge |
Moving or Removing Breaker Boards
To move a breaker board, zoom into the design, click and drag the breaker board to a new spot using the grip point, which is represented by a diamond.
To remove a breaker board, click Remove in the Home ribbon, Breaker Board, and the breaker board.
