Views Post Frame

Top  Previous  Next

Workspace Panes: Up to four (4) workspace panes can be displayed, providing different views of the design while it is being created. The workspace is set up using the Views ribbon menu.



C-RedButton Status Bar: The status bar at the bottom of the window displays information regarding the status of the program as well as information for the active workspace pane.

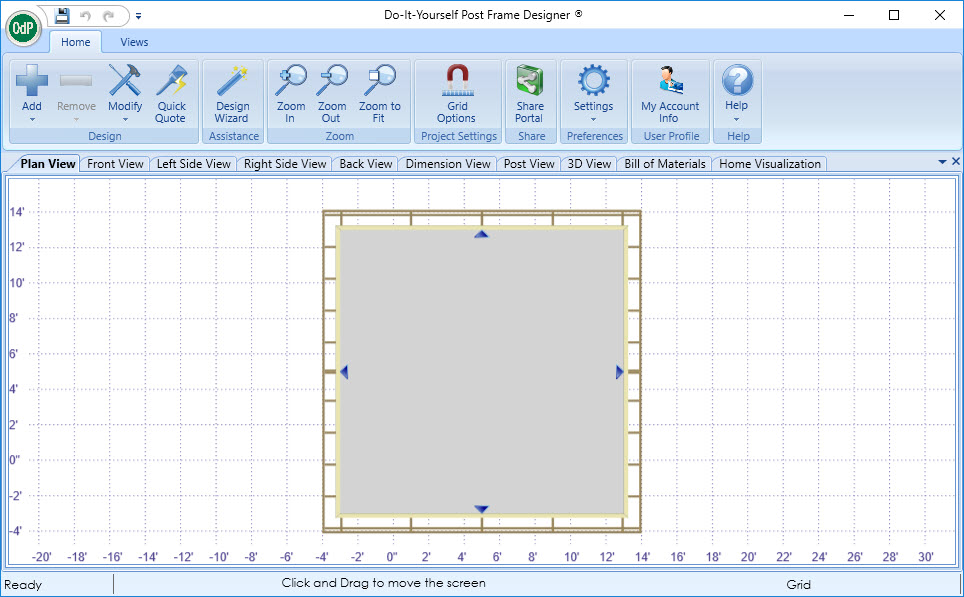

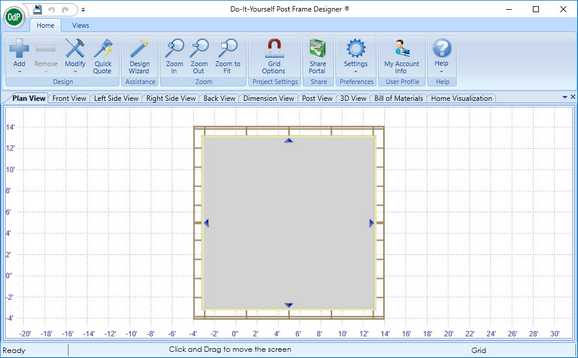

C-RedButton Plan View - This is the View that a user will spend a majority of their time. You must be in Plan View in order to add or remove any object (fencing, gates, outdoor living products, etc.)



p-view-pv-diy_zoom60

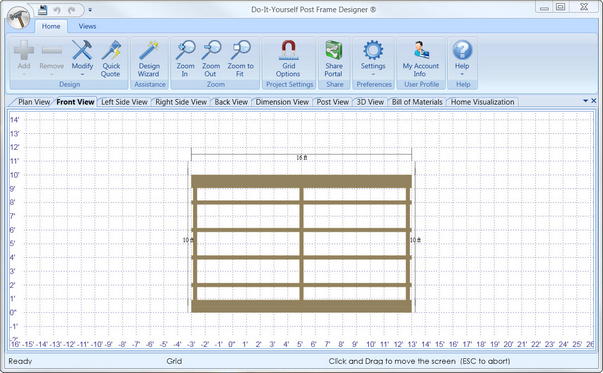

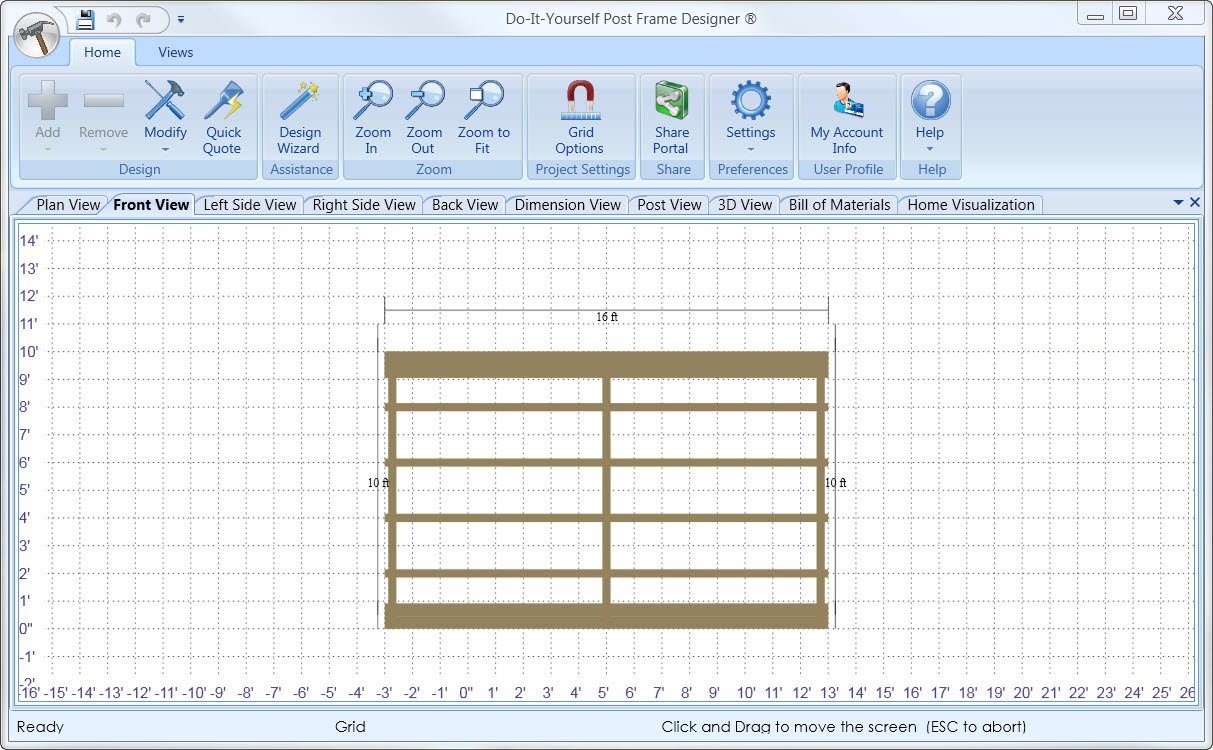

C-RedButton Front View - Front View displays a vertical view of the wall represented by the line closest to the bottom of the application window (in Plan View).





Click on image to enlarge
Click on image to enlarge

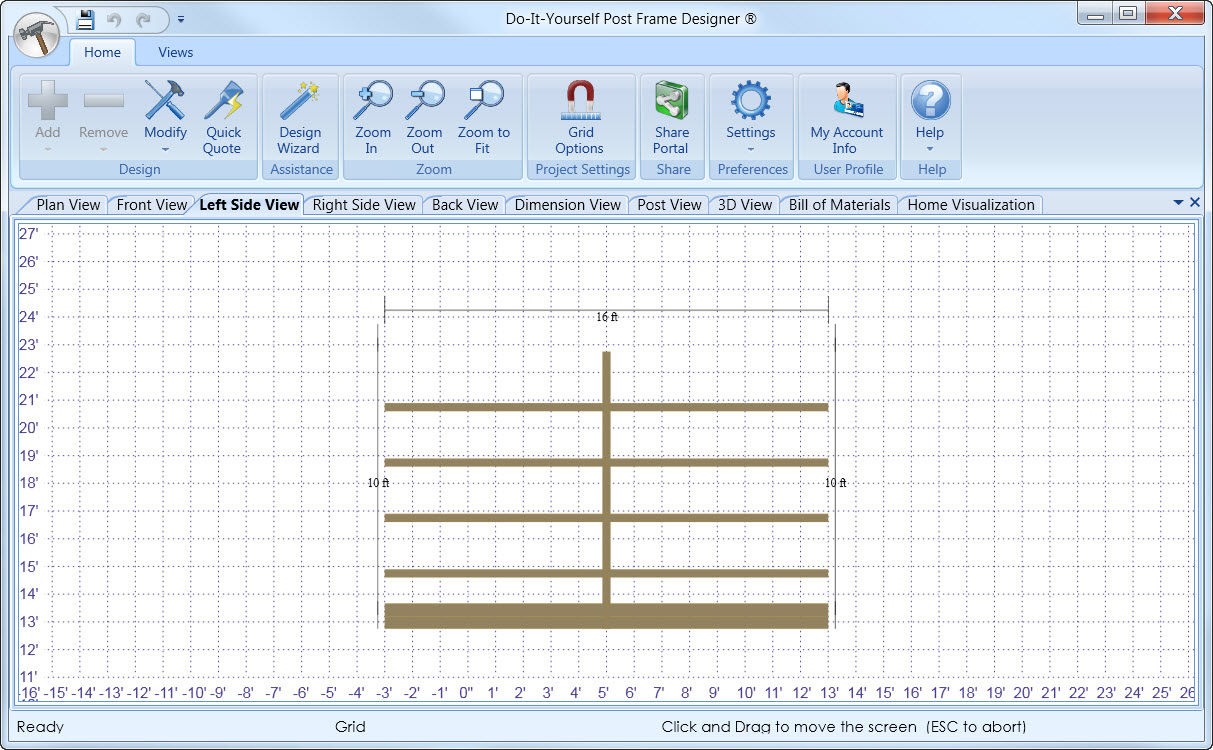

C-RedButton Left Side View - Left Side View displays a vertical view of the wall represented by the line closest to the left of the application window (in Plan View).





Click on image to enlarge
Click on image to enlarge

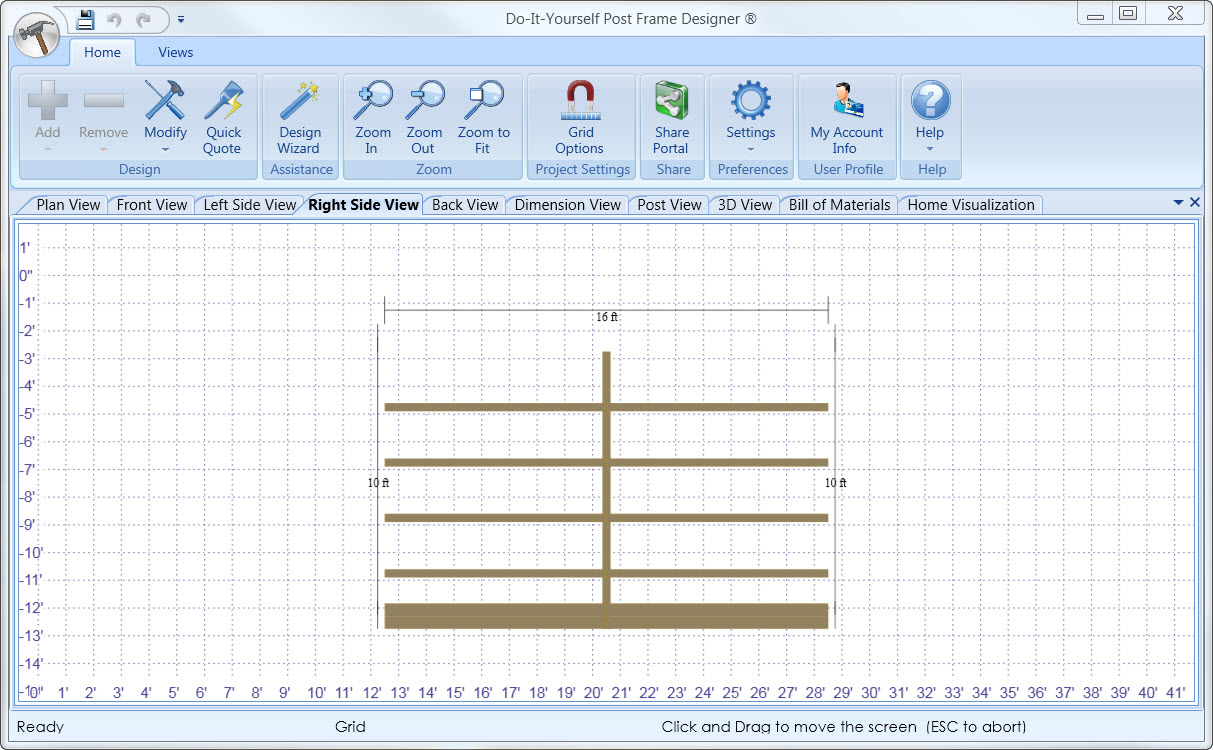

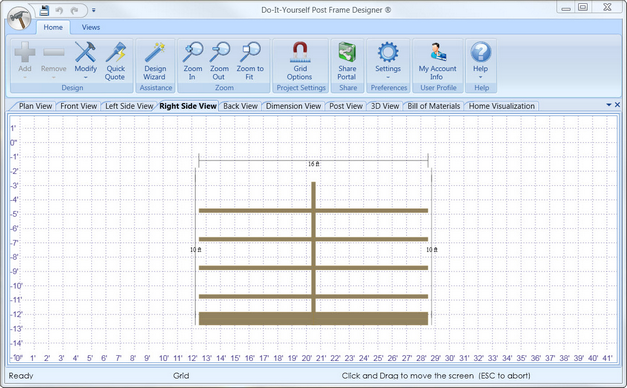

C-RedButton Right Side View - Right Side View displays a vertical view of the wall represented by the line closest to the right of the application window (in Plan view).





Click on image to enlarge
Click on image to enlarge

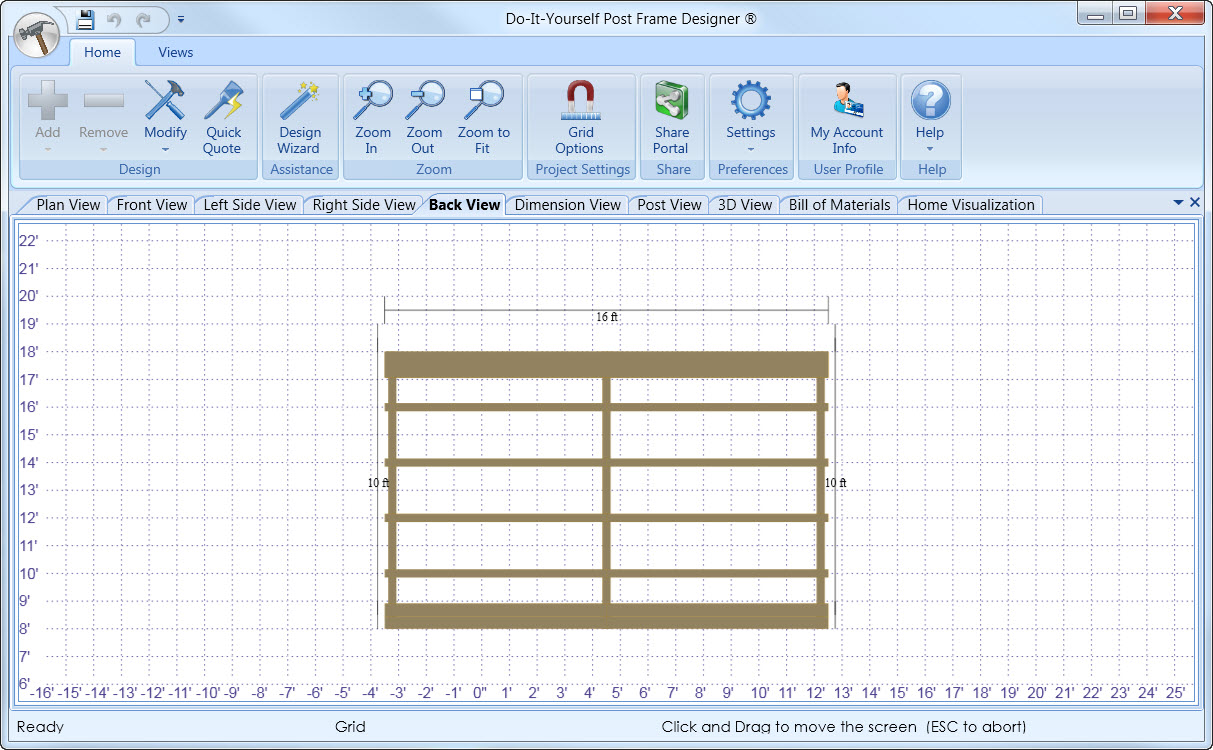

C-RedButton Back View - Back View displays a vertical view of the wall represented by the line closest to the top of the application window (in Plan View)

.



Click on image to enlarge
Click on image to enlarge

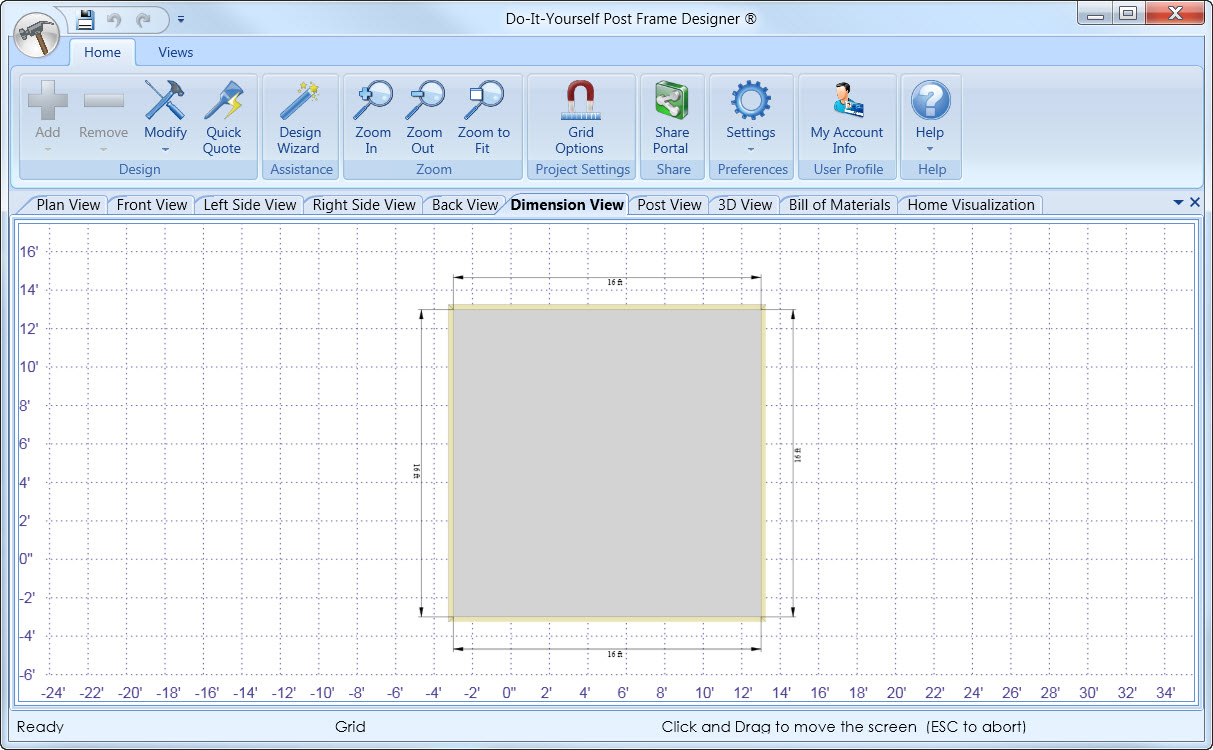

C-RedButton Dimension View - Displays an outline of the structure with dimension lines.





Click on image to enlarge
Click on image to enlarge

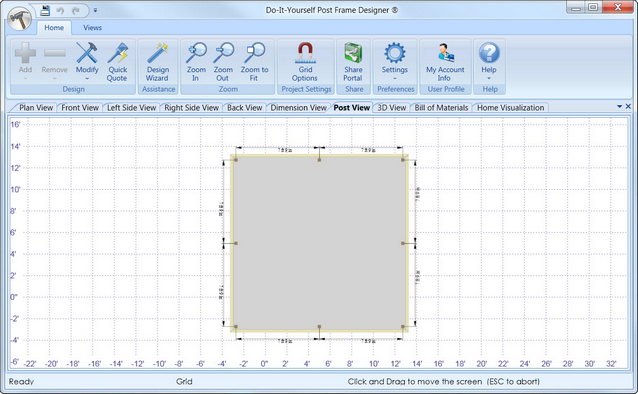

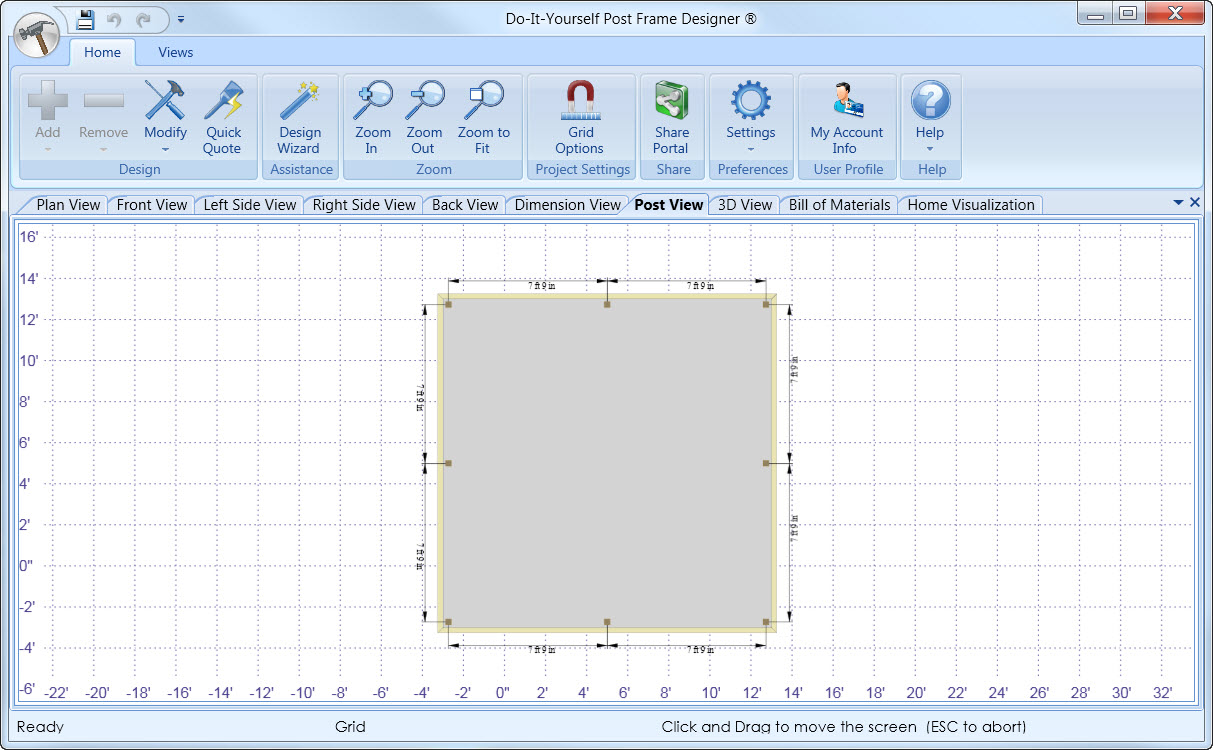

C-RedButton Post View - Displays an outline of the structure with post locations and dimension lines.





Click on image to enlarge
Click on image to enlarge

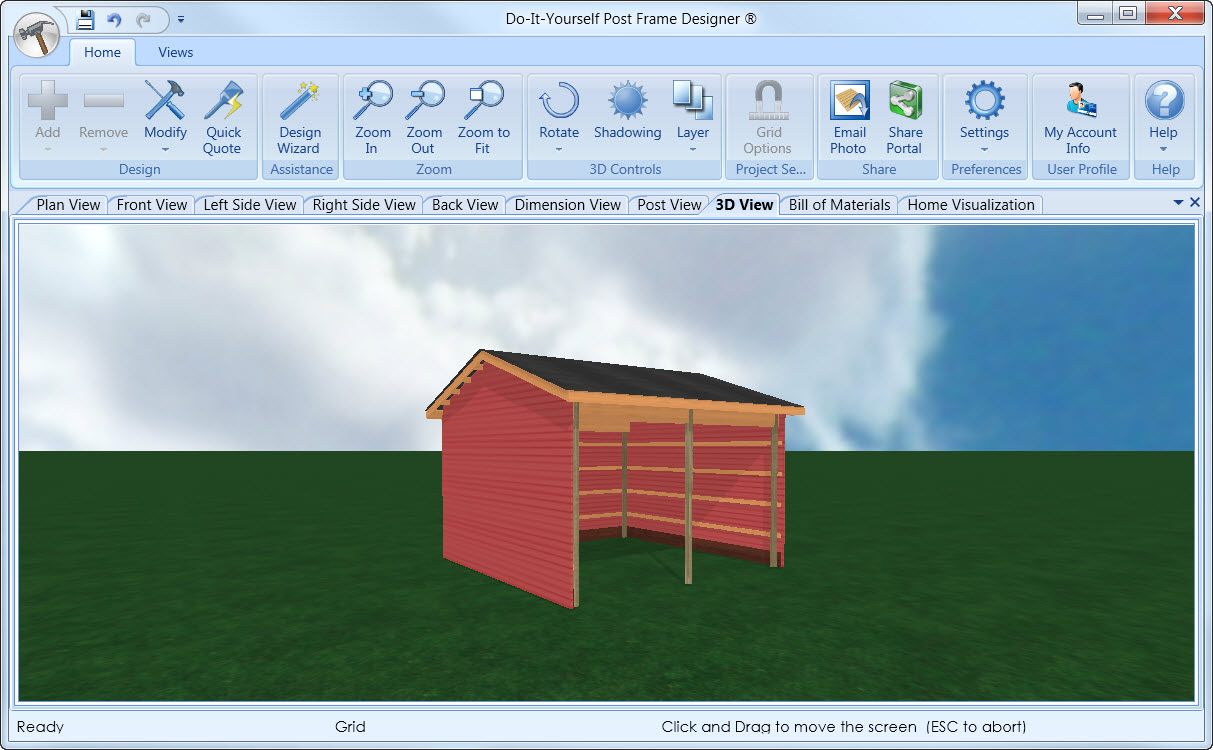

C-RedButton 3D View - Fully rotational 3D view that allows you to hide and show components of the design in the 3D view to inspect specific layers of your design.



Click the 3D window and drag the mouse to change the viewing angle.

The Rotate button controls 3D rotation.
The Shadowing button is used to adjust the position of the sun and change how shadows are cast.



Click on image to enlarge
Click on image to enlarge

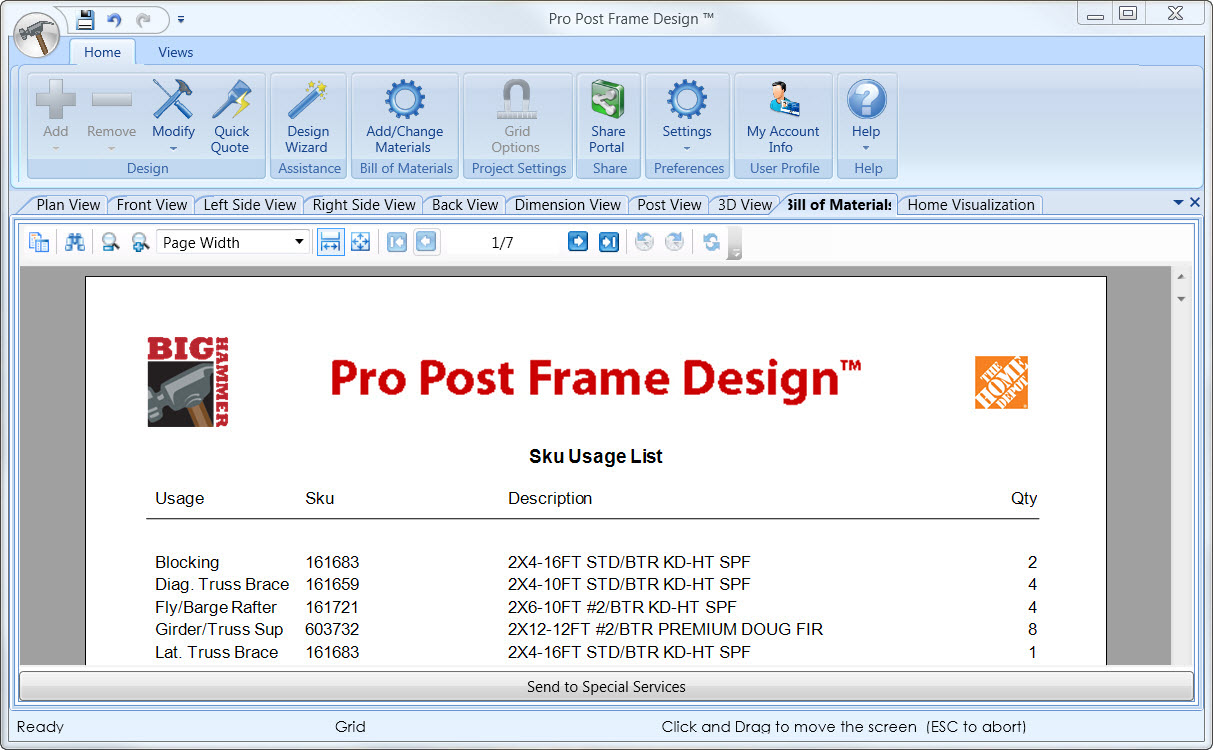

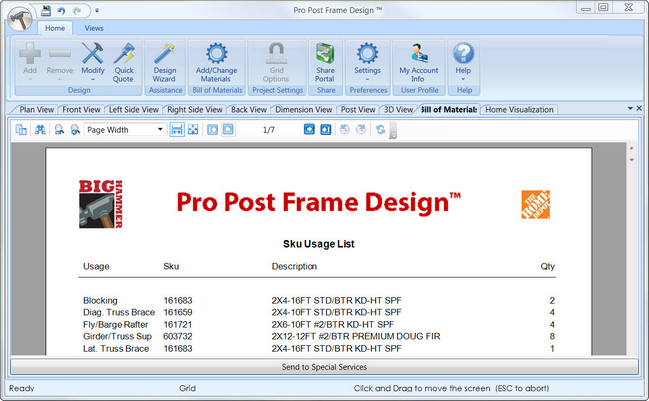

C-RedButton Bill of Materials View - The Bill of Materials shows detailed information about materials and specifications for the design.



Note: Information displayed in the left-hand pane of the Bill of Materials View will vary depending on the software configuration.





Click on image to enlarge
Click on image to enlarge

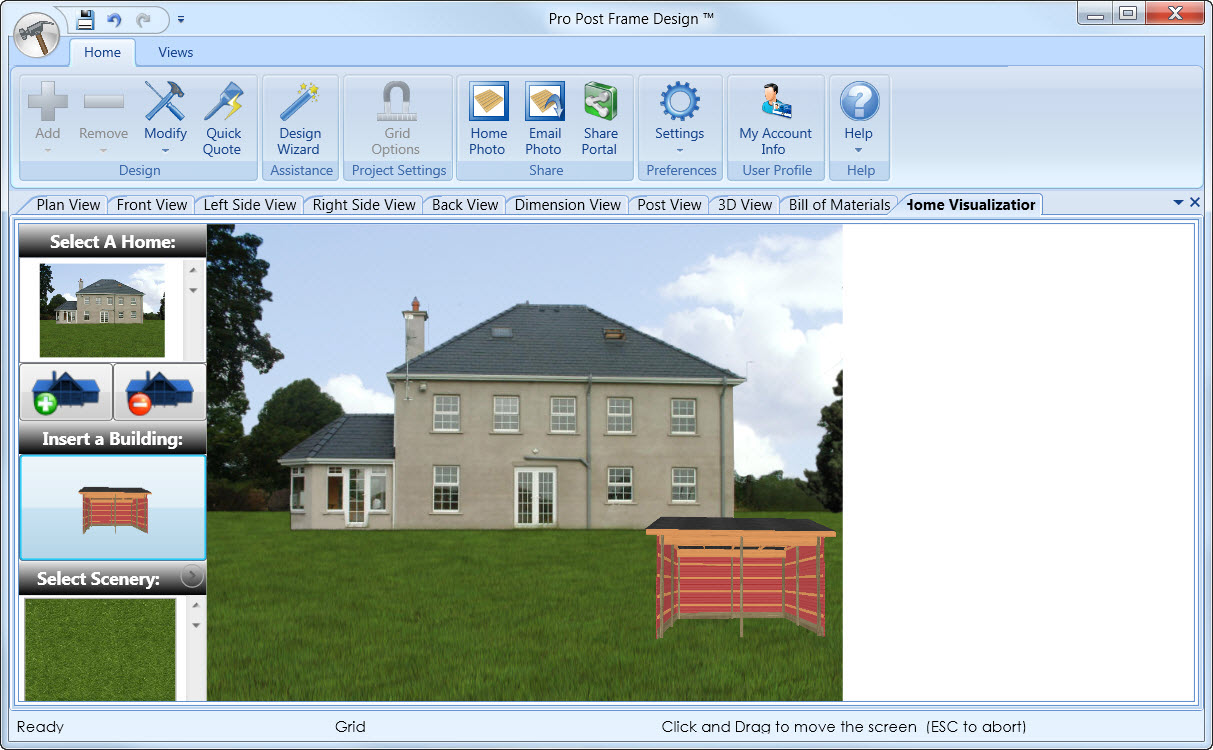

C-RedButton Home Visualization View - Import a picture of a house, add the 3D image of the design and email the picture to anyone.



To create a Home Visualization, import a photograph of a house (.jpg, .bmp, .gif, or .png) using the Home Photo option on the Ribbon Menu.



Click the Post Frame image in the Insert a Building section.
Drag the Garage into place.
To proportion the Post Frame in correlation the house size, stretch it using the resize handles. C-Handle-Resize
You can bend and reshape the Post Frame. C-Handle-Warp-Activate
Activate warp mode. C-Handle-Warp
Drag a warp handle
To add other items to the visualization, such as trees and shrubs, scroll through the list in the Select Scenery section of the Home Visualization pane.



After any object is dragged and placed into the visualization, the object can be moved, resized, or removed from the scene.  To modify an object in the scene, click it to display the options.





Click on image to enlarge
Click on image to enlarge







C-RedButton Tabbed Mode - Displays one window covering the entire workspace. The window displays multiple view tabs, as well as a drop-down menu for choosing other views.

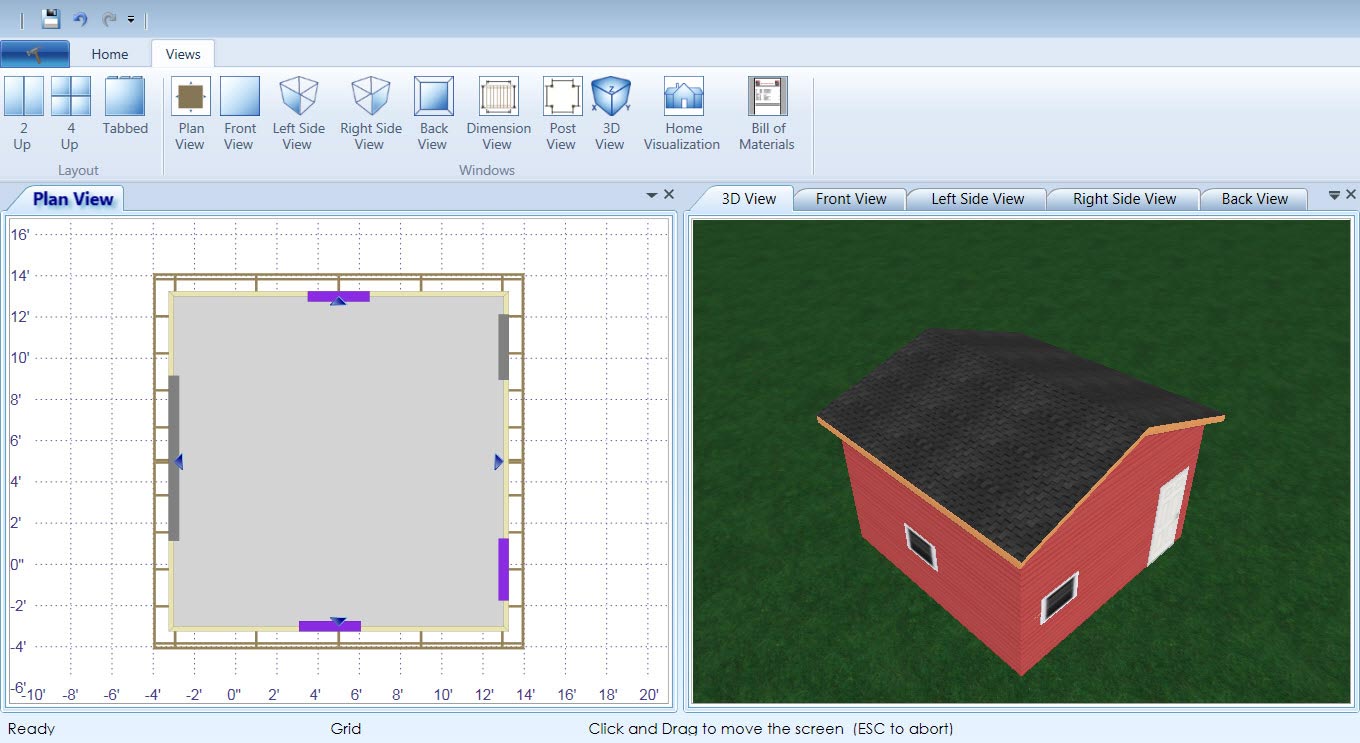

C-RedButton 2 Up Mode - Displays two windows in the workspace; side-by-side. The left-hand window defaults to Plan View; the right-hand window displays multiple view tabs, as well as a drop-down menu for choosing other views.



Click on image to enlarge
Click on image to enlarge





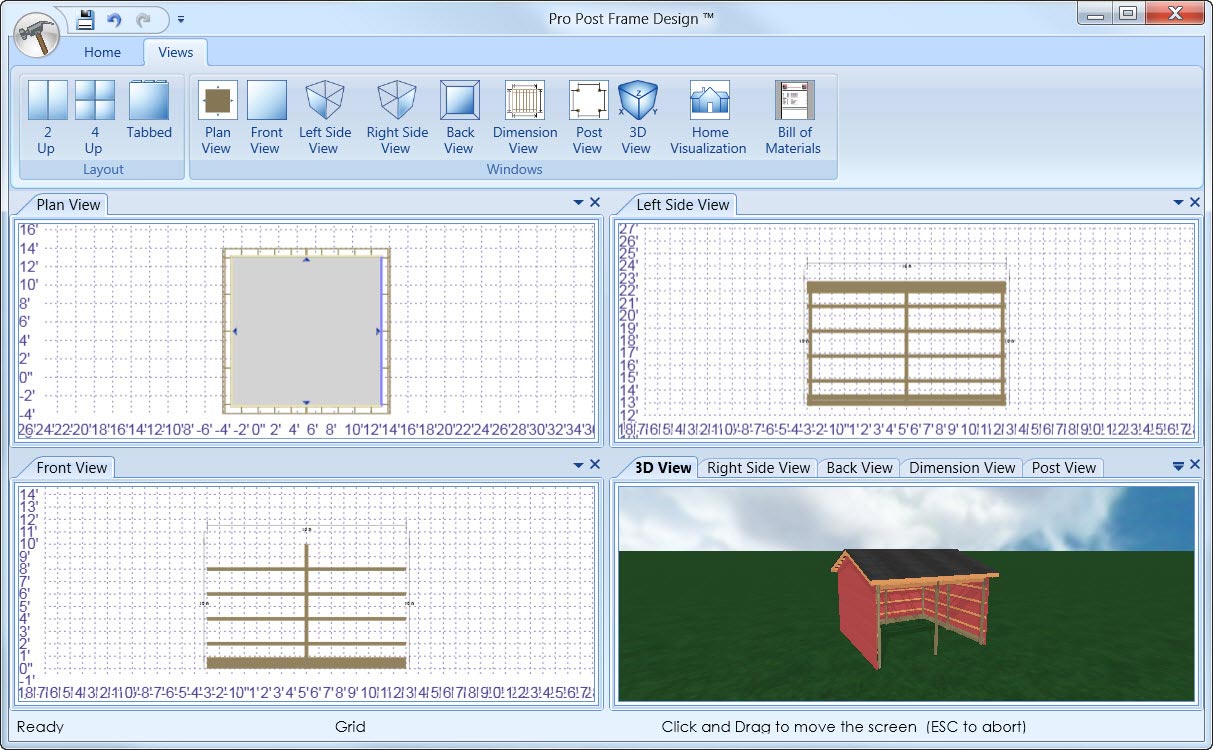

C-RedButton 4 Up Mode - Displays four windows; one in each corner of the workspace.  Plan View, 3D View and Dimension View are each displayed in a separate window.  The lower right-hand window displays multiple view tabs, as well as a drop-down menu for choosing other views.



Click on image to enlarge
Click on image to enlarge

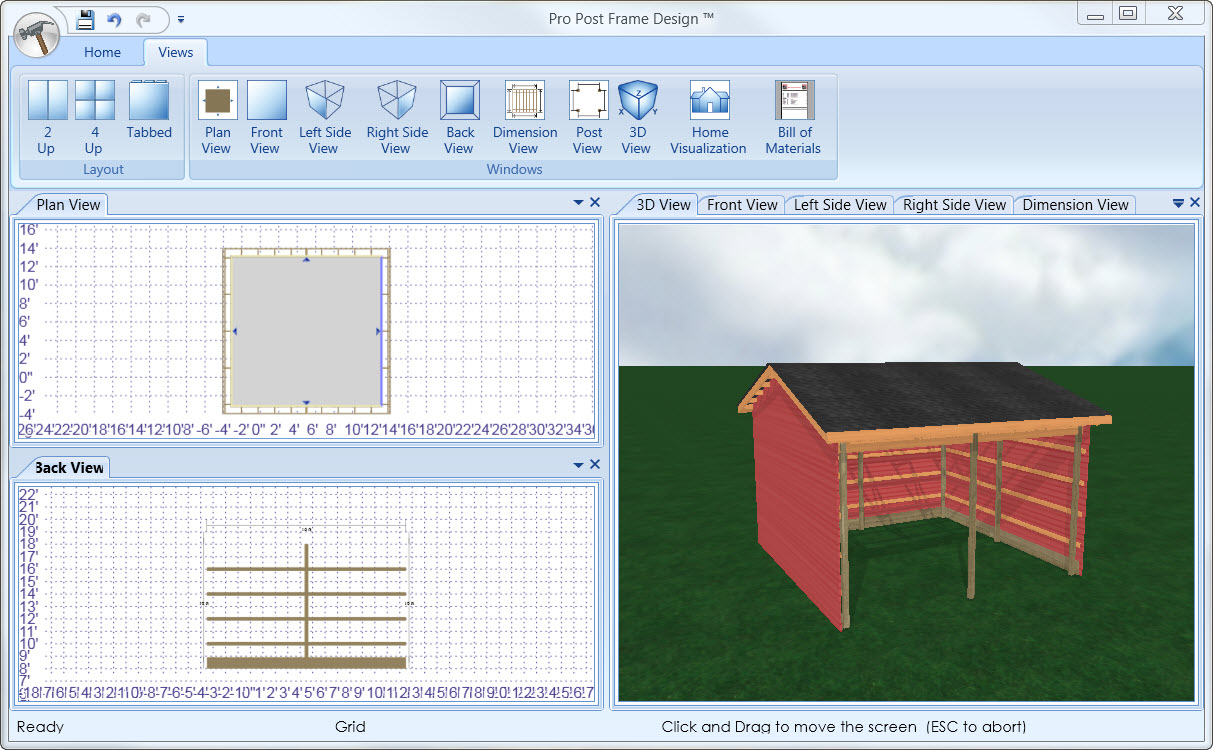

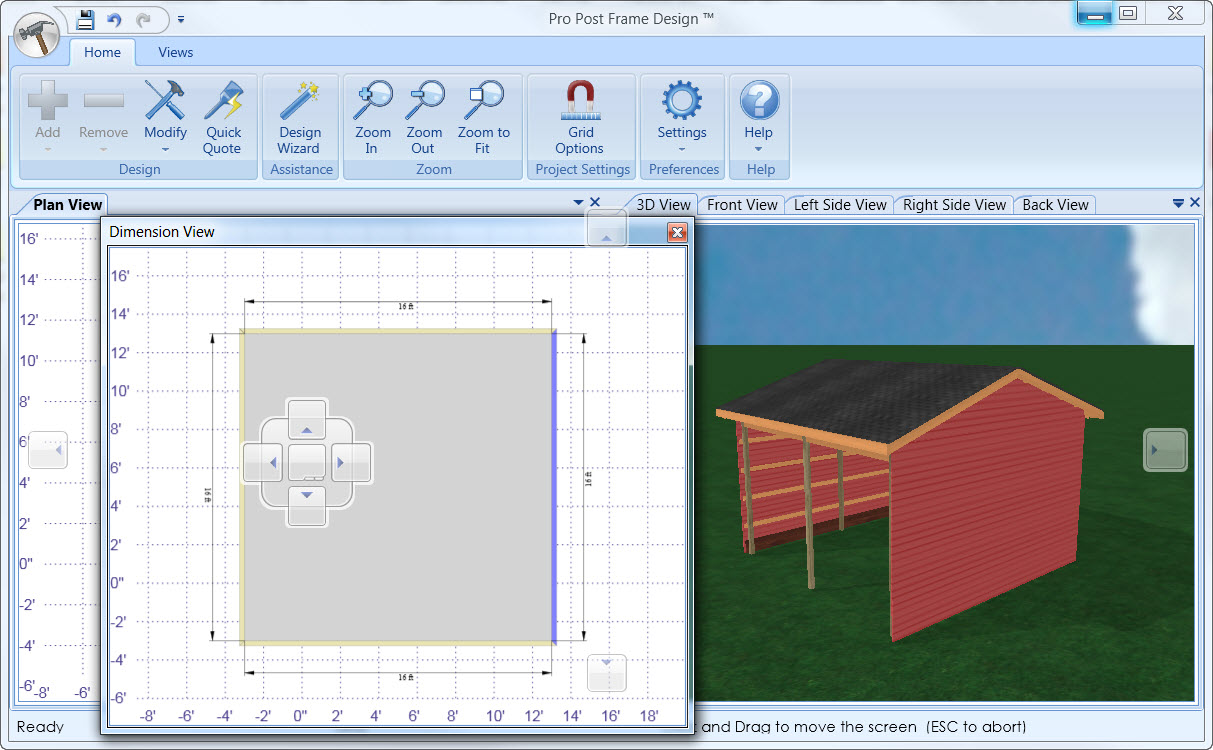

C-RedButton Dragging and Dropping Tabs - You can relocate tabs by dragging and dropping them in the workspace. Example: Dragging the tab to the bottom position creates a new window for the tab.



1.Place the mouse pointer on the tab that you want to move.



2.While holding the left mouse button, drag the tab until the cross appears as shown below.



3.Place the mouse pointer on the section of the cross that corresponds with where you want to place the tab (indicated by the red line).  A blue bar will be displayed to indicate where the new window will be added.



4.Release the left mouse button and a new window will be displayed as shown below.



Click on image to enlarge
Click on image to enlarge



Click on image to enlarge
Click on image to enlarge
