Modifying, Moving and Removing a Deck
|Top Previous Next|
Modifying a Deck
Design Materials - Changing the Materials used in the Design

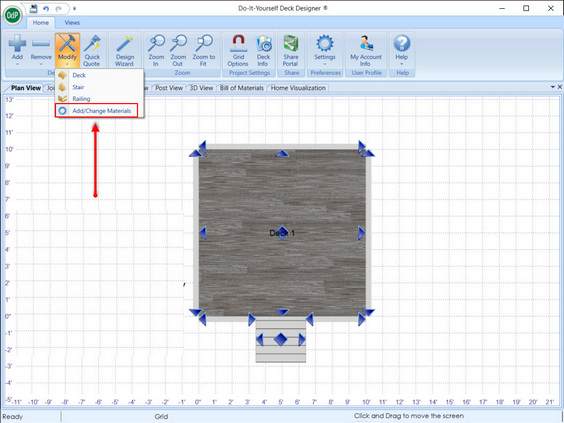

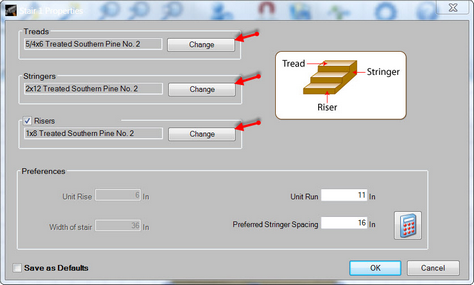

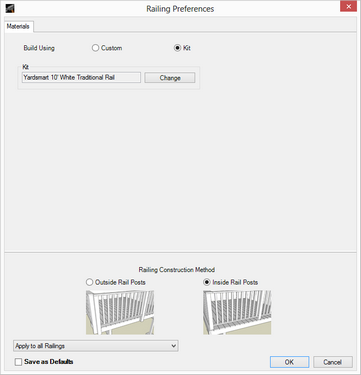

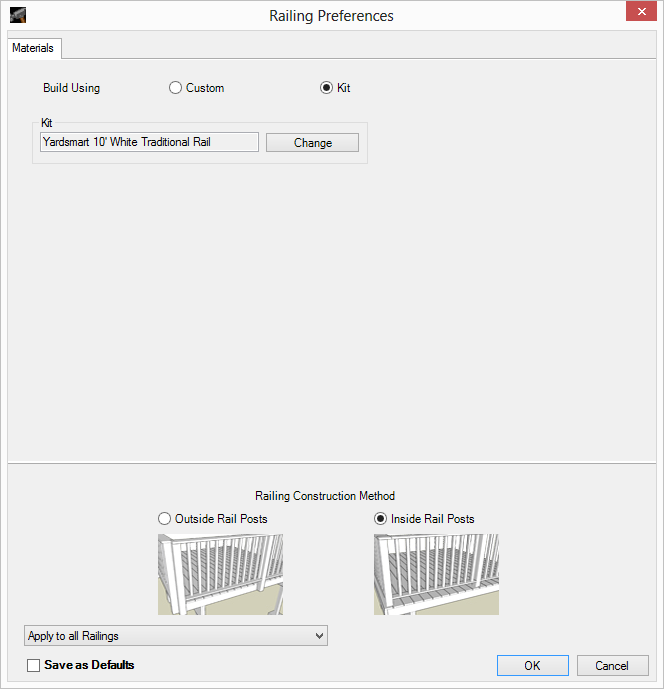

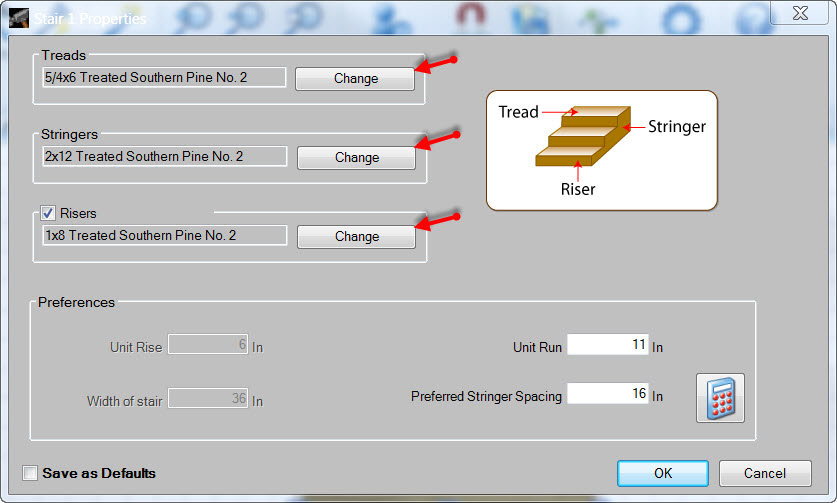

Note: By Selecting Add / Change Material an End-User has the ability to change certain materials such as fasteners, connectors, flashing, caps and concrete. The change can only be done to materials within the brand already selected
Deck Properties - Change the Materials used in the Design and properties of the deck
This dialog contains the following tabs:

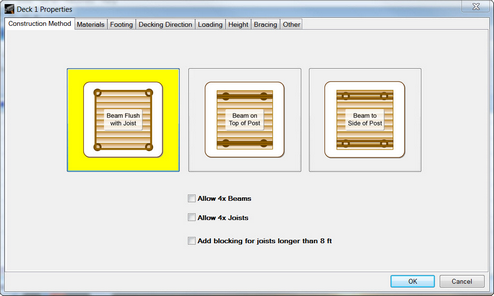

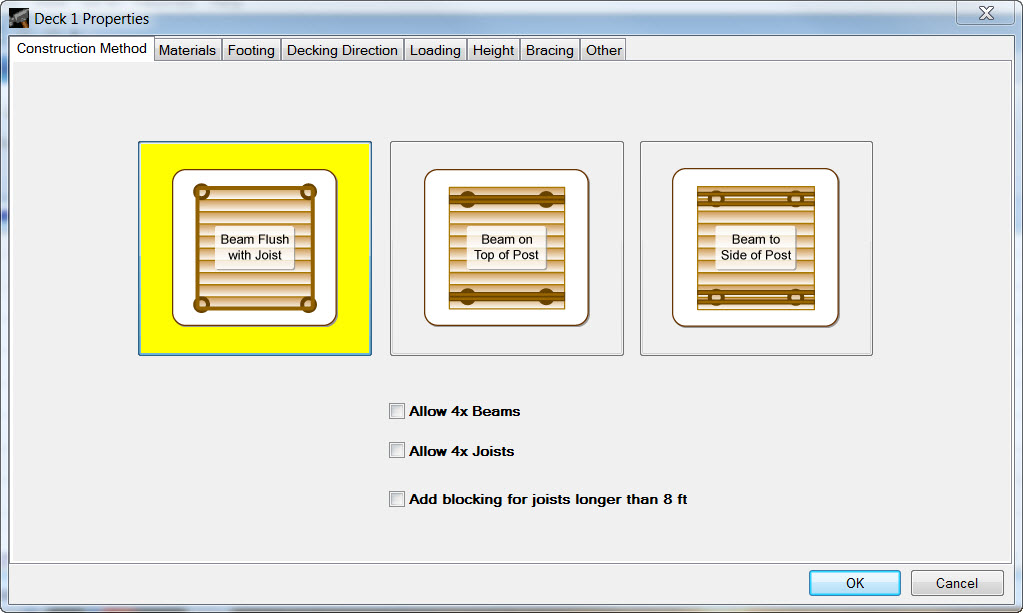

From this tab you can select from among several construction styles. You can also choose to add blocking when the lengths of joists exceed 8 feet.

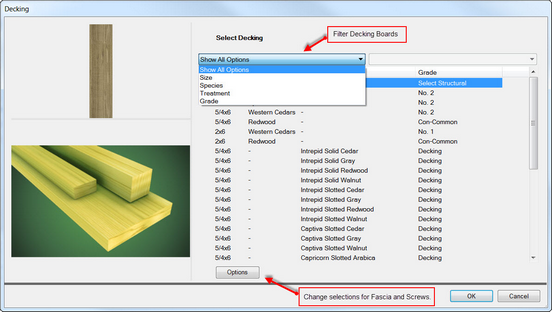

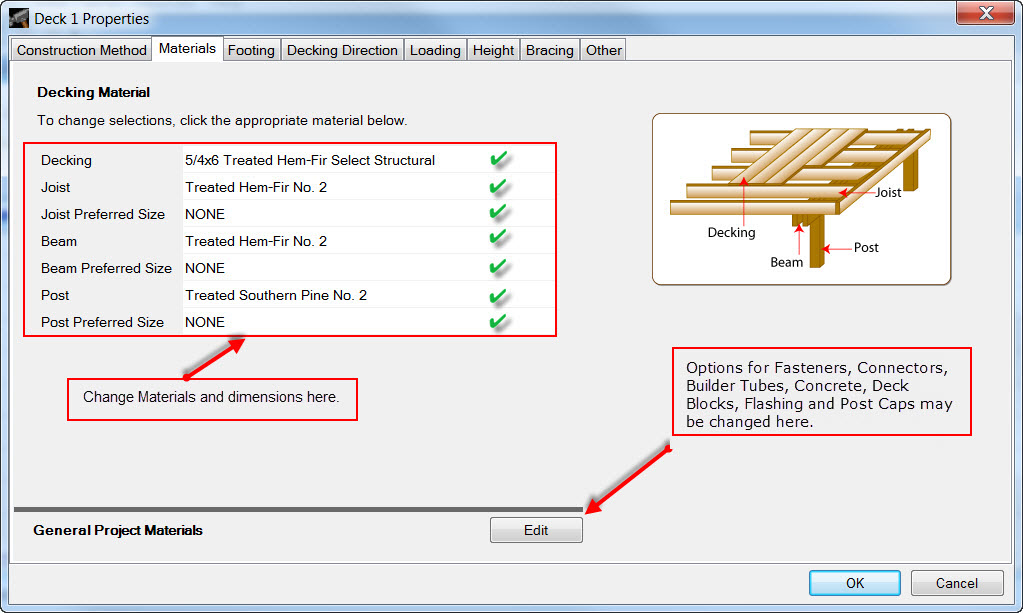

From this tab you can change the materials used for decking, joists, beams, posts, and fasteners.
To change materials:
Note: If you have no size preferences and want the system to build the deck using the best sizes for joists, beams and posts, choose NONE for Preferred Sizes.

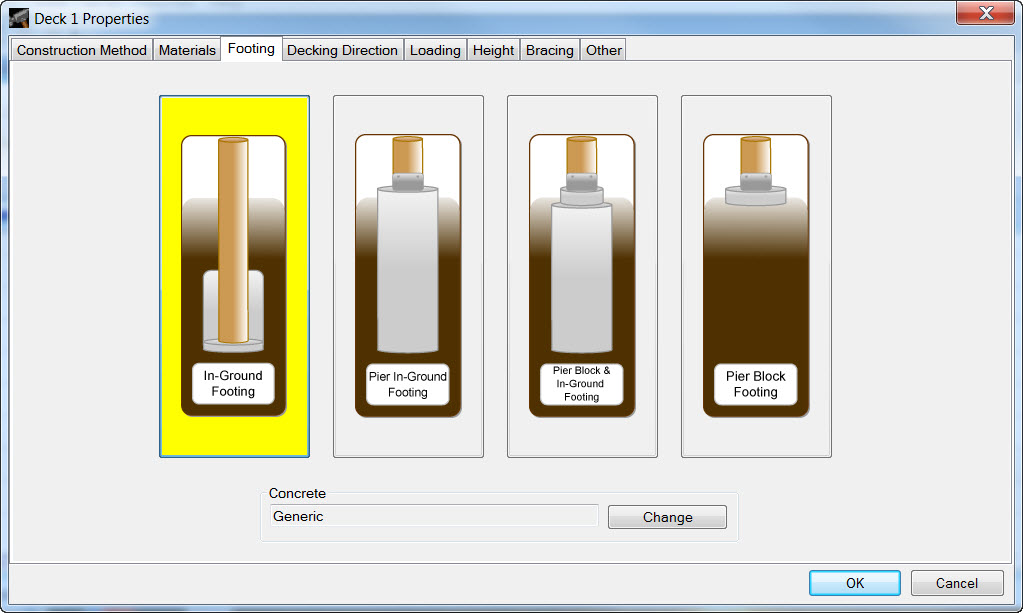

Select a post footing style from this tab.
Note: By selecting Pier In-Ground Footing or Pier Block In-Ground Footing will cause Sono-tubes (Builder tubes) to automatically also be included (Bid) on the Bill of Material.

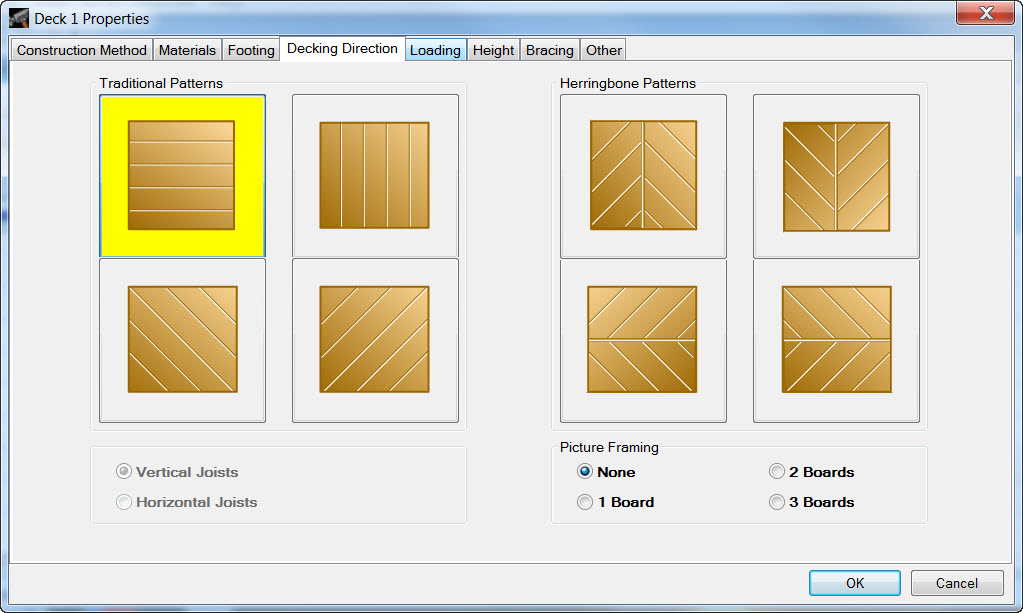

Select a traditional pattern (horizontal, diagonal, or vertical) or herringbone pattern from this tab.
Note: When selecting diagonal decking, you must choose either Horizontal Joists or Vertical Joists. The herringbone option supports adding decorative borders around the deck (Picture Framing).
Note: When selecting picture framing, the color of the lumber used in the picture framing is not selectable in the application.

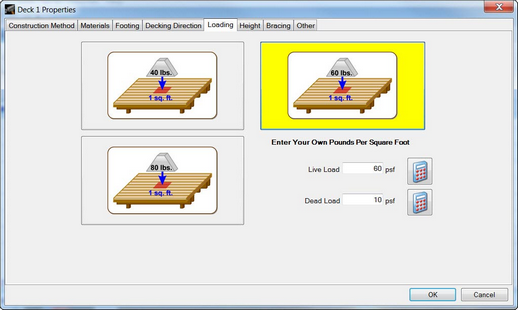

Enter dead load and live load in pounds per square foot (PSF).

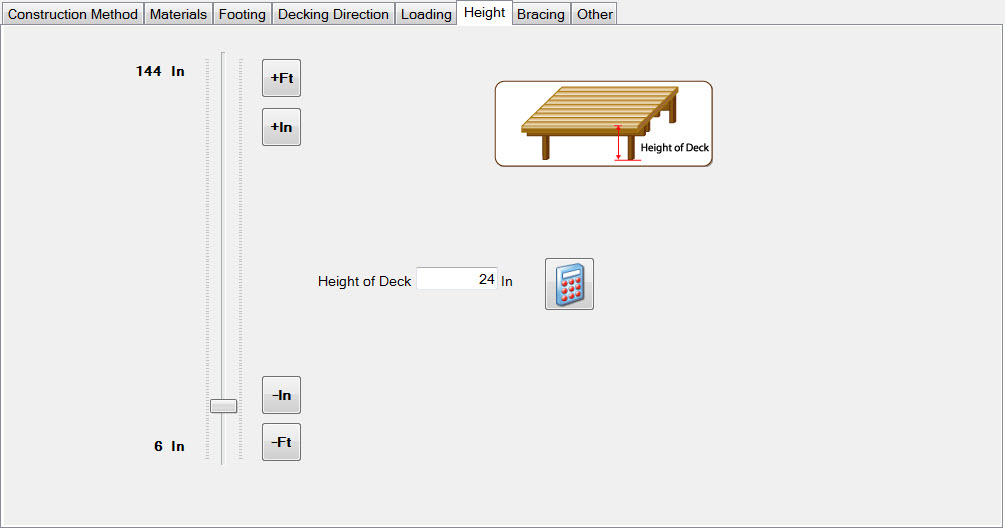

Set the deck height using the sliding bar or by typing the measurements.
Note: If you set the deck 32" high or higher, the system prompts you to add railings for safety when you close the Deck Properties dialog.

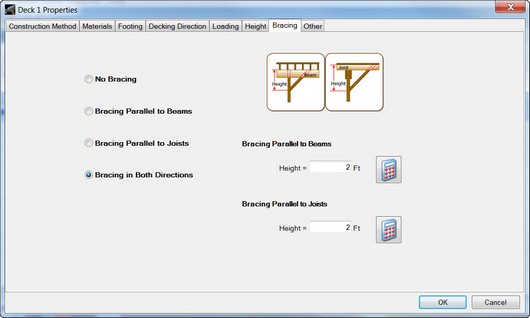

Click the option button beside the preferred bracing method. The default height is 2' for all options and you can enter your own value here.

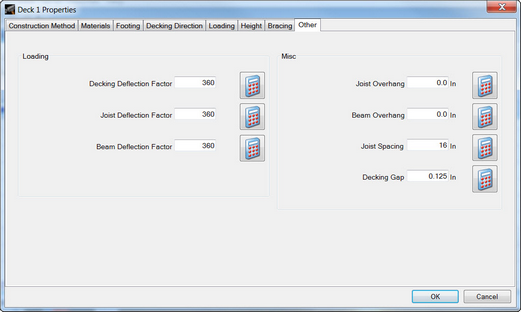

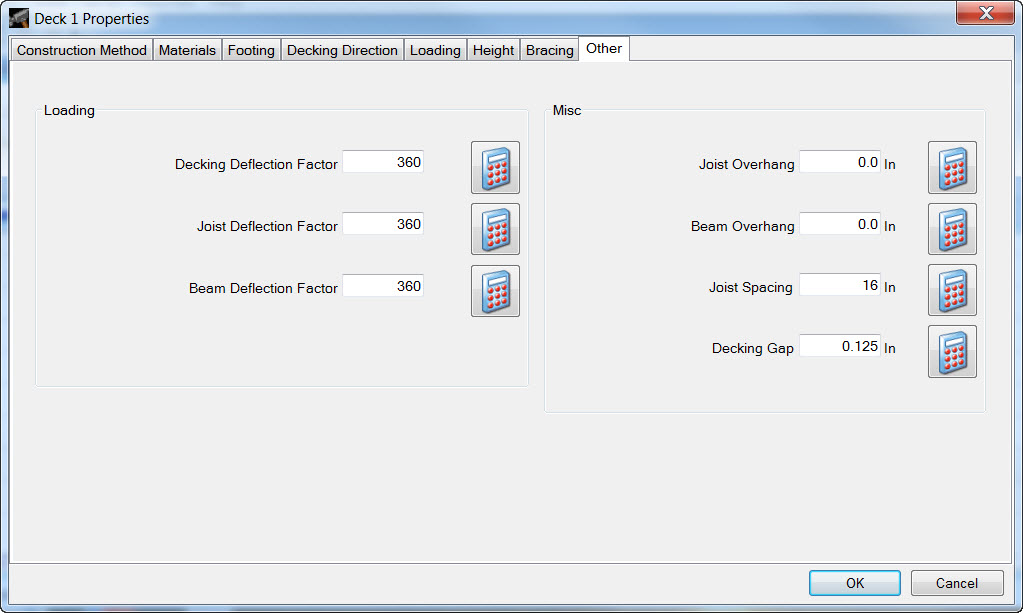

This tab controls preferences for the following. These settings also appear in the project specs.
Deflection Factors: Displacement of a structural member (decking, beams, posts) under load. Default = 360
A deflection factor of 240 means that, under load, a structural member (beam, joist, decking board) will deflect (move) no more than 1/240th of its length. Take for example a 10-foot-long beam. 1/240th of 10 feet is ½". When fully loaded (with the dead load and live load used), the center flexes down. If the vertical displacement at the center is ½" or less, then the deflection is permissible with a deflection factor of 240. A higher deflection factor means that less deflection is allowed.
Deflection is what makes decks (or other structures) feel wobbly or feel weak. It is possible to make a structure that is in fact strong enough to hold up under a load, but is still wobbly. Not only do people not like wobbly structures, the continual slight movement may eventually weaken the structure; in wooden structures the connectors or wood-connector joints are the typical points of failure in this case. By ensuring that the structural members meet the deflection test, this problem is avoided. In most cases, the design parameter that actually limits how long a beam or joist can be (before it has to be replaced with a larger one) is the deflection factor.
Note: To create new default settings for decks, select the Save as Defaults check-box.
Changing the Size of a Deck

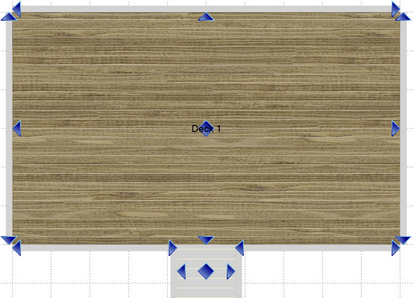

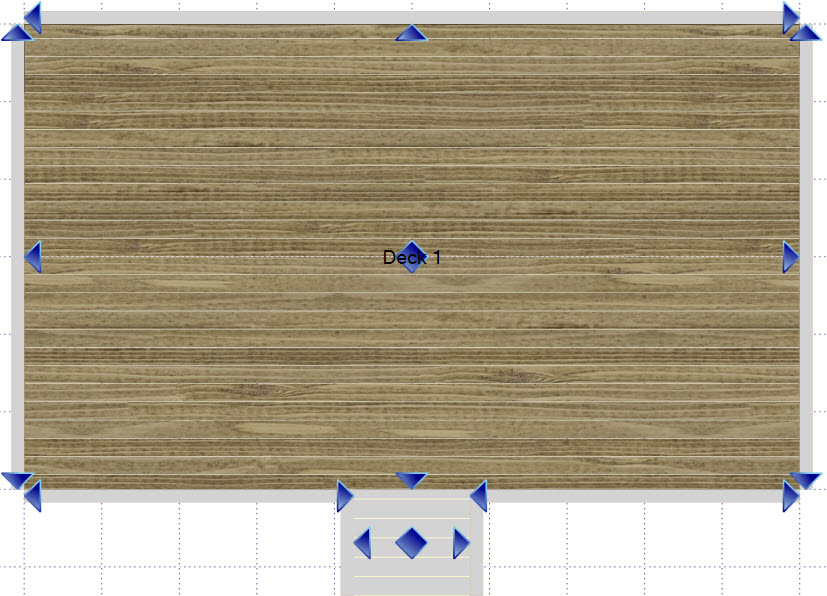

Change the length of a deck side by dragging a grip point (represented by ) to a new location on the design grid. Place the mouse pointer over the grip point and hold the left mouse button to move the deck to a different location on the grid.

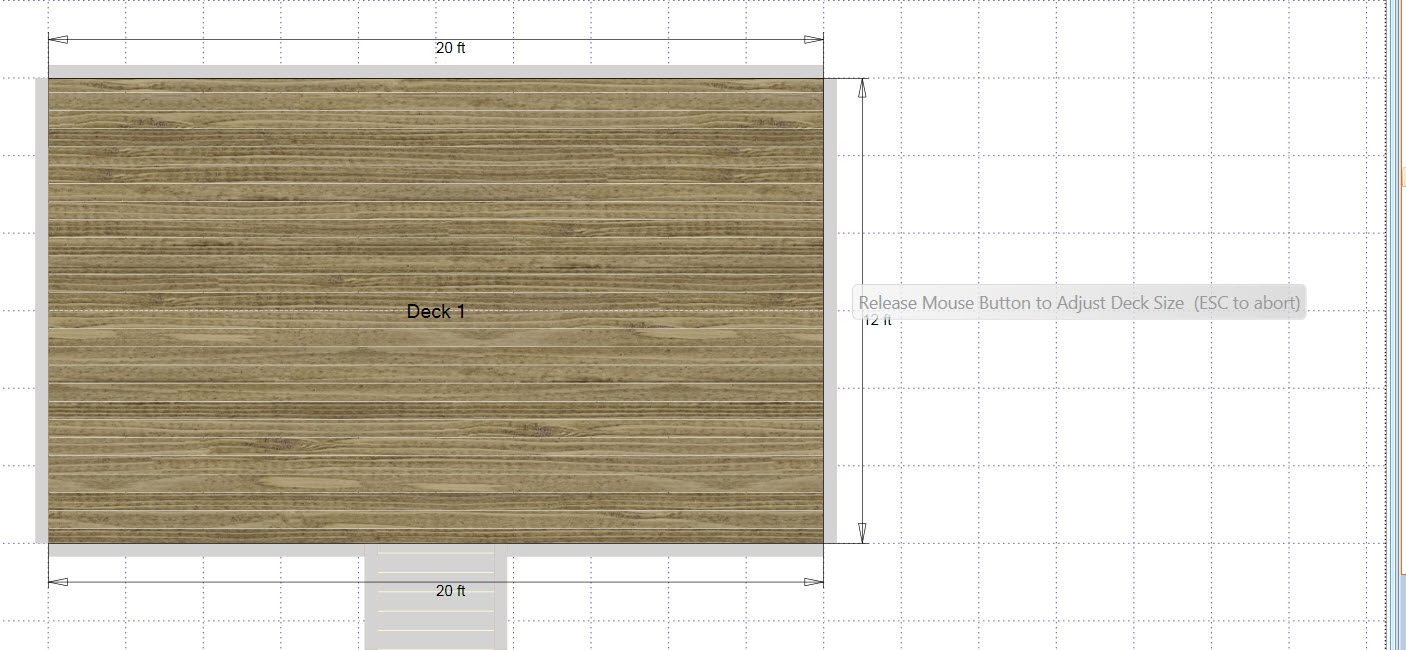

Note: As you drag an edge, measurements along dimension lines display new values.
Moving a Deck

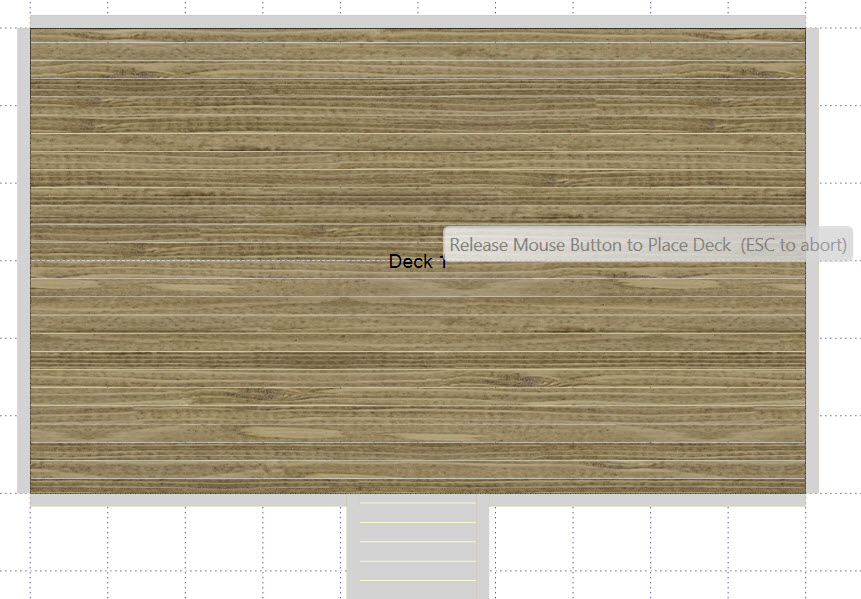

To move a deck on the grid, drag it by the grip point located in the center of the deck, (represented by ). Place the mouse pointer over the grip point and hold the left mouse button to move the deck to a different location on the grid.
Note: A deck attached to a wall cannot be moved.
Removing a Deck
Note: Removing a deck removes all associated structures, such as stairs, railings, etc.
